T 90

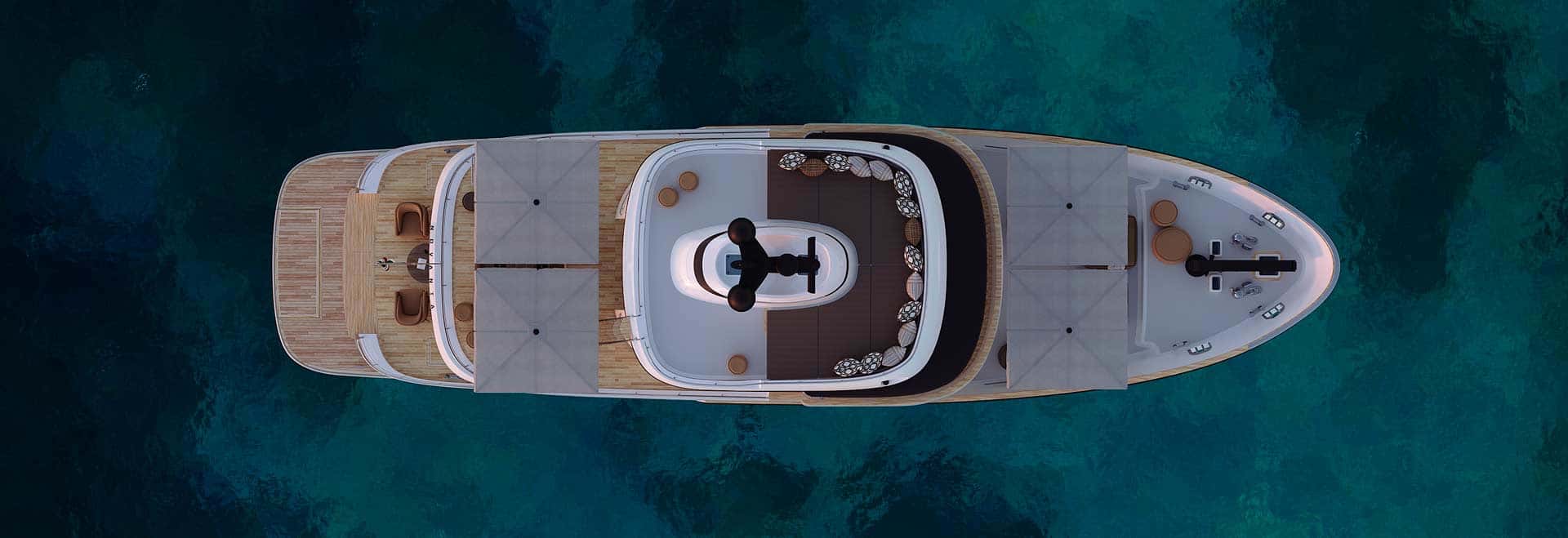

Layout
TECHNICAL DATA
| Length out all | 26,10 m |
| Lenght ISO8666 | 23,96 m |
| Width | 7,14 m |
| Diving under propellers | 1,80 m |
| Dry displacement | 81.000 |
| Full-load displacement | 91.000 |
| Fuel | 9000 litri |
| Freshwater | 1750 litri |
| Low consumption speed | 8 nodi |
| Cruise speed | 12 nodi |
| Maximum speed | 15,5 nodi |
| Payload people | 18 |
| Beds | 8+4 equipaggio |
Omologazione : Direttiva 94/25/CE del 16.06.1994 e successivi emendamenti – RSG Guidelines, Design Category “A”
Tutte le misure e dimensioni saranno suscettibili di variazioni . Progetto: Terranova Italian Yachts
Hull
Resin and layering in compliance with CE regulations.
Hull with longitudinal/transverse reinforcements and double layering in the keel.
Below the waterline finish done with three coats of black antifouling.
Appropriate protection for galvanic current.
Engines and propulsion
N° 2 MAN D2676LE443 730 Hp Inverter ZF 500.1-IV i=3
N° 2 Propeller shafts d.85 in MAR17
5 blades propellers
You want to know all the customizations of T90?
Request the brochure or contact us to receive all the information you need.
